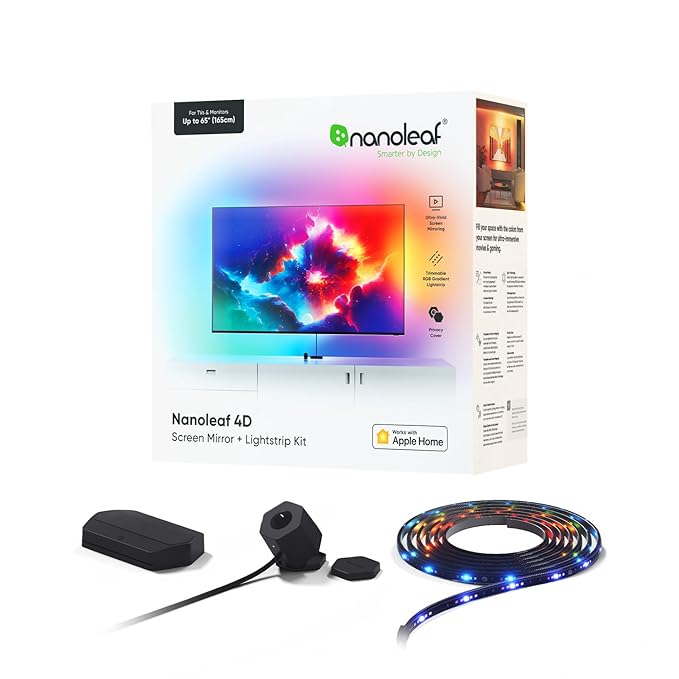

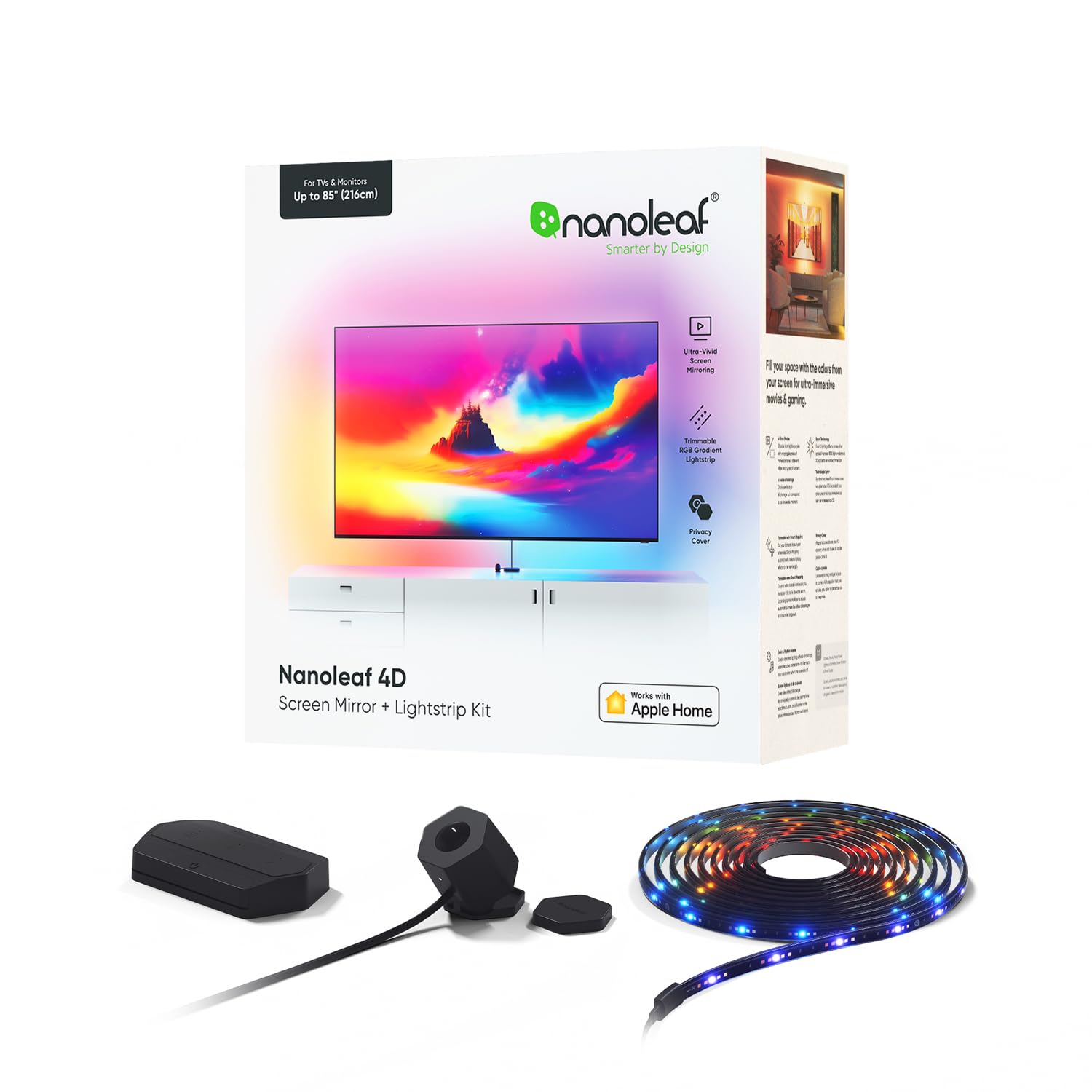

Nanoleaf 4D Screen Mirror + Lightstrip Kit

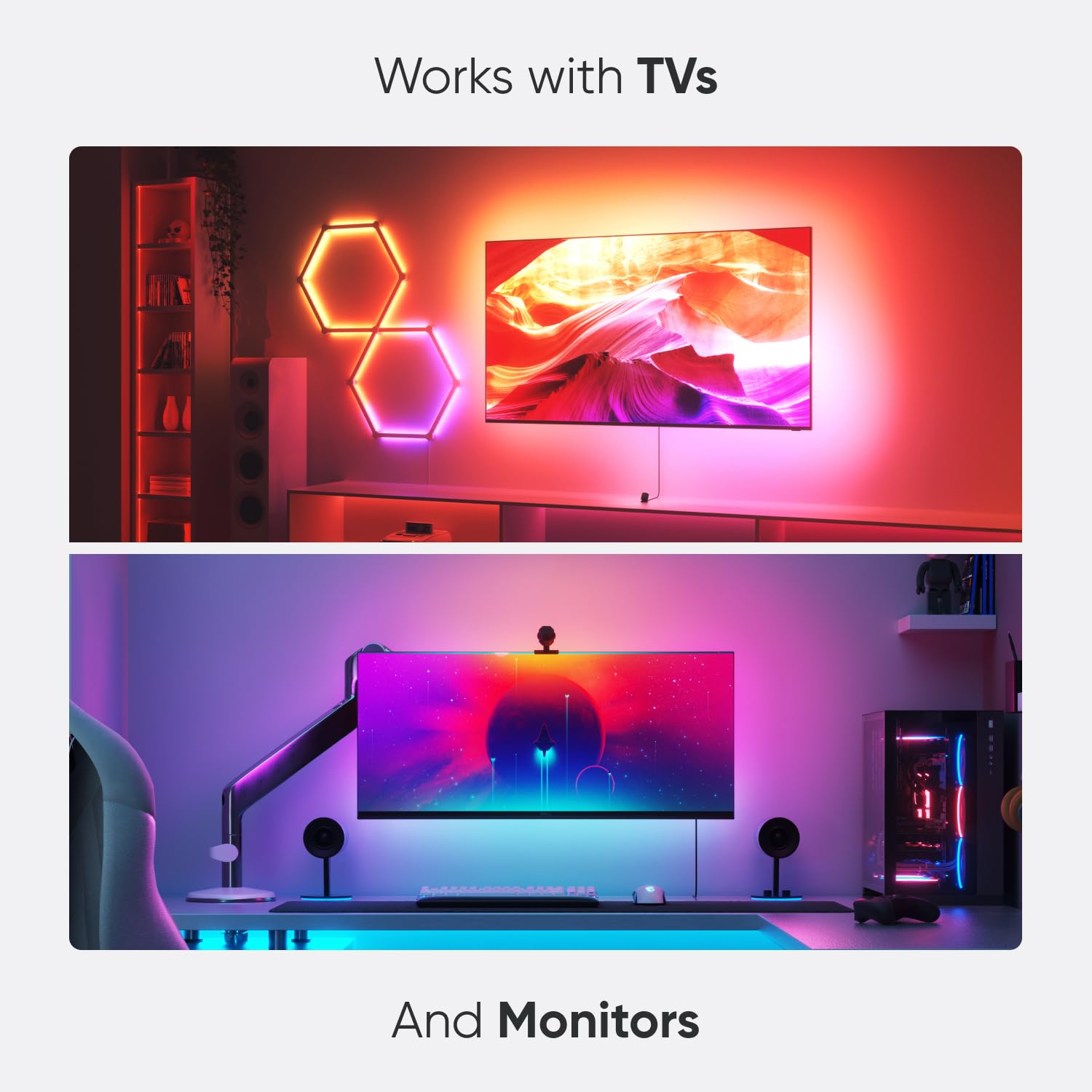

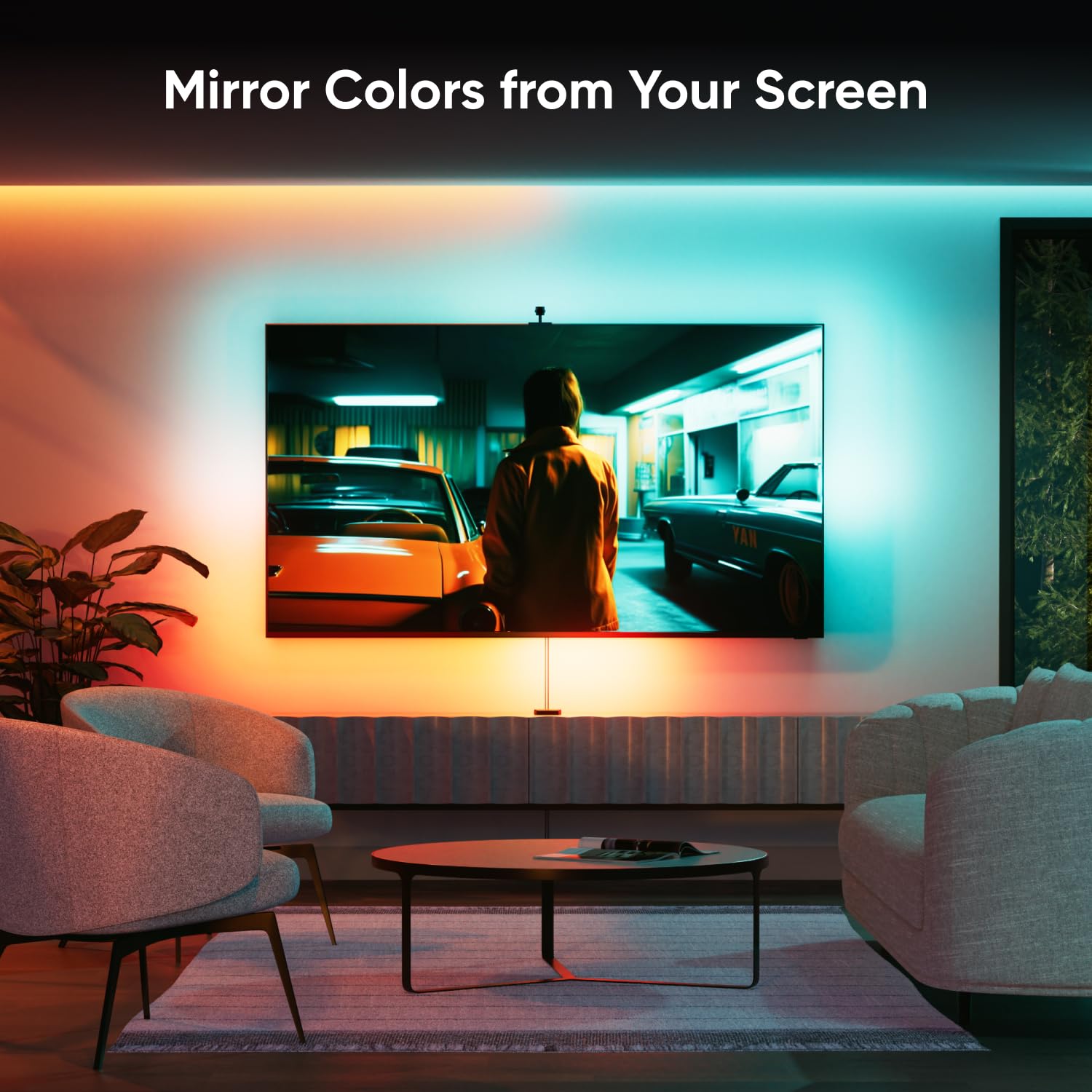

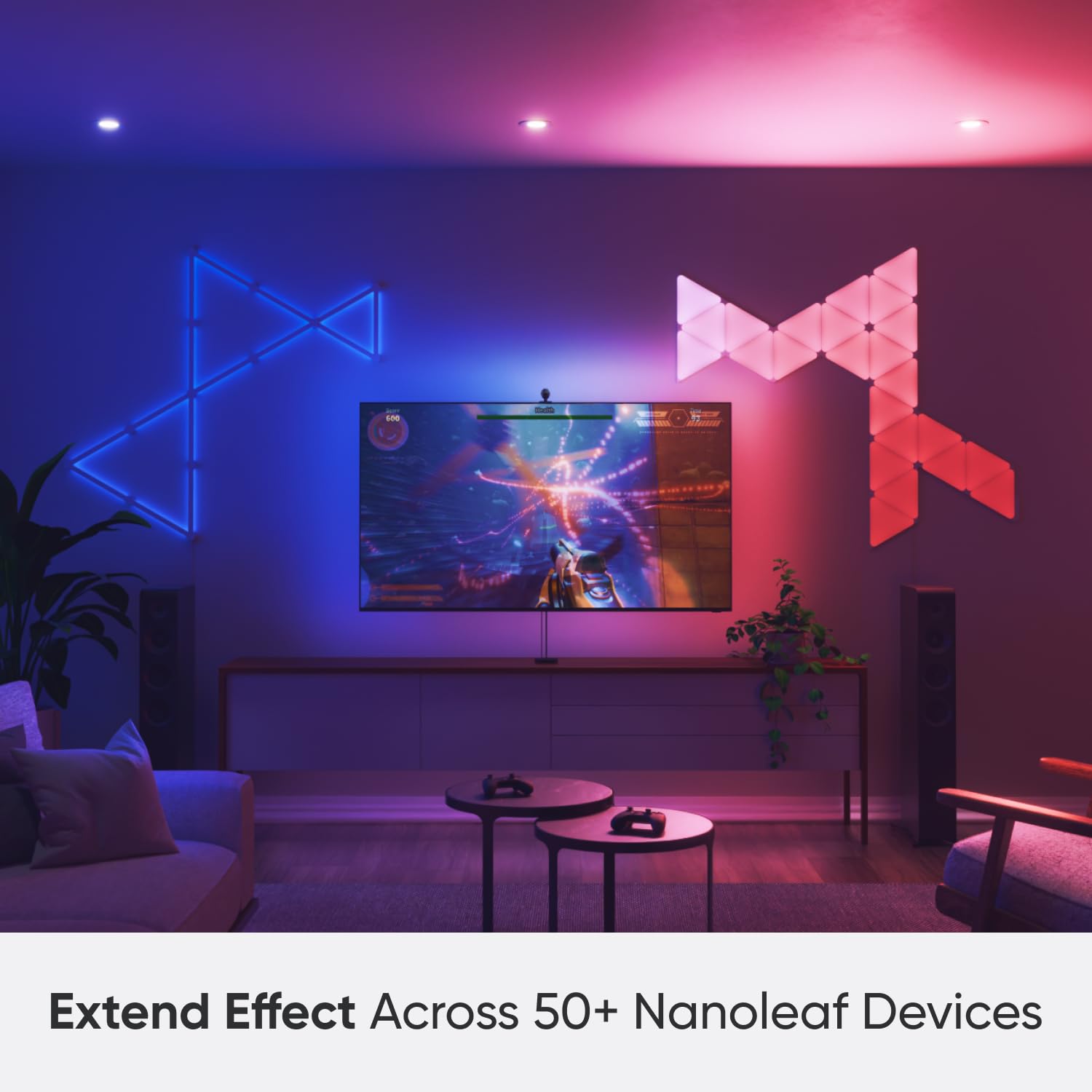

Take your entertainment beyond the screen. Nanoleaf 4D is a screen mirror camera kit that syncs the colours on your screen onto the addressable gradient LED lightstrip mounted behind it.Experience the ultra-immersive ″4D″ effect as the vibrant backlighting illuminates your space with the colours from your favourite shows, movies, and video games.For a levelled-up entertainment experience, enable ″Sync+″ in the Nanoleaf App to extend the screen sync effects across 50+ Nanoleaf RGB lights—like Nanoleaf Shapes and Lines- Ultra Vivid Screen Mirroring- Trimmable Lightstrip- Privacy Cover for Camera- Use with TV Screens or Monitors

• Dimensions & Weight
  Controller

  93.3mm*57.1mm*17mm & 66g

  Lightstrip up to 65"

  12mm*4.8mm @4m & 50g

  Lightstrip up to 85"

  12mm*4.8mm @5.2m

  Camera

  31mm*28mm*34mm & 60g

  Mount

  181.2mm*56.3mm*50mm

  Corner Brackets

  148.5mm*18mm*17.9mm

  Camera Cap

  29.9mm*27mm*4.6mm

  Cable Length

  Camera: 1.5m | Lightstrip: 1m | PSU: 2m


• General
  Luminous Flux per Metre


  For Up to 65" 1075 lumens @4 metre
  For Up to 85" 1122 lumens @5.2 metre

  Lifetime

  25,000 hours

  Communication Protocol

  WiFi (2.4 GHz b/g/n)

  NOTE: 5GHz networks are not compatible with Nanoleaf products.

  Dimmability

  Yes (via Nanoleaf App, Voice, Controller)

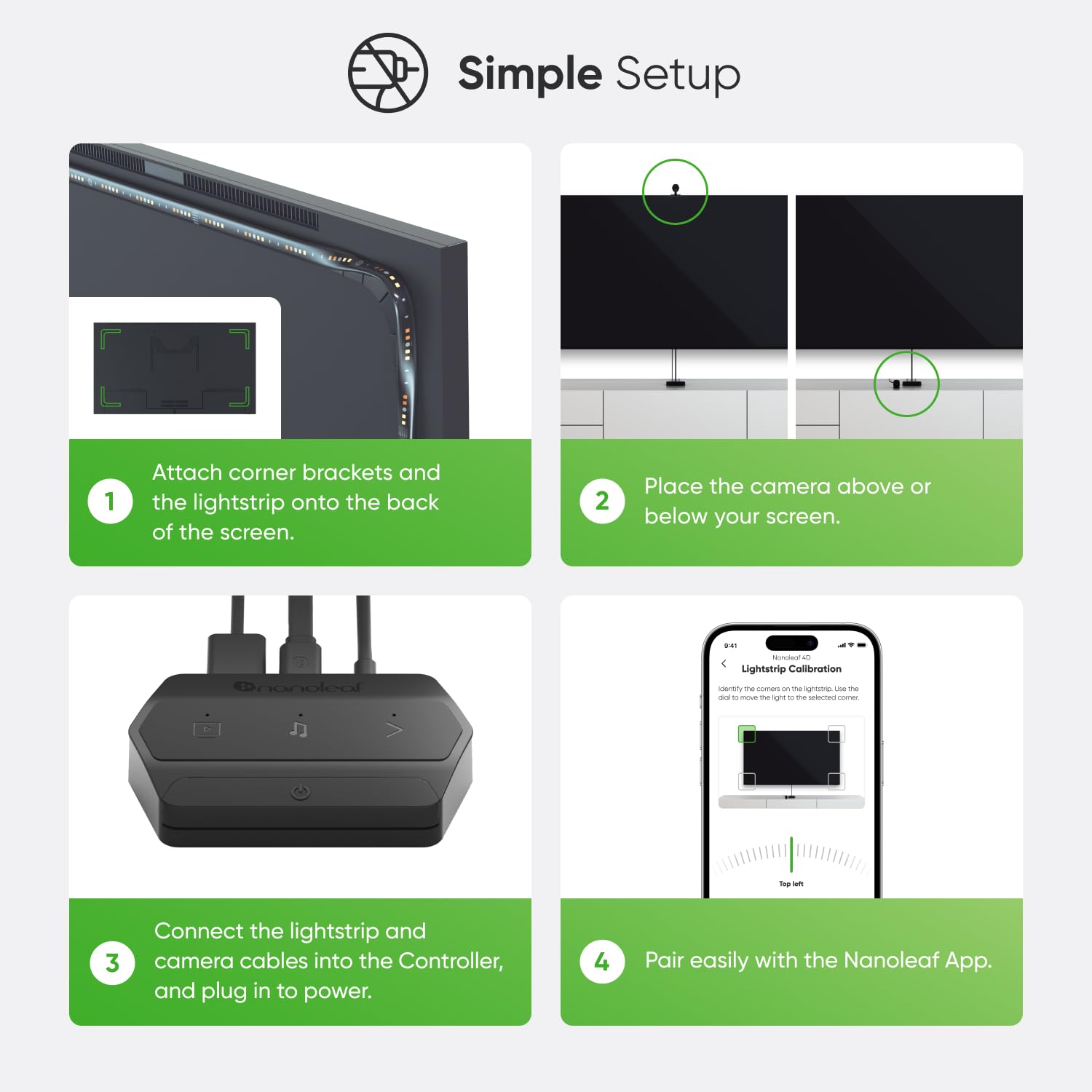

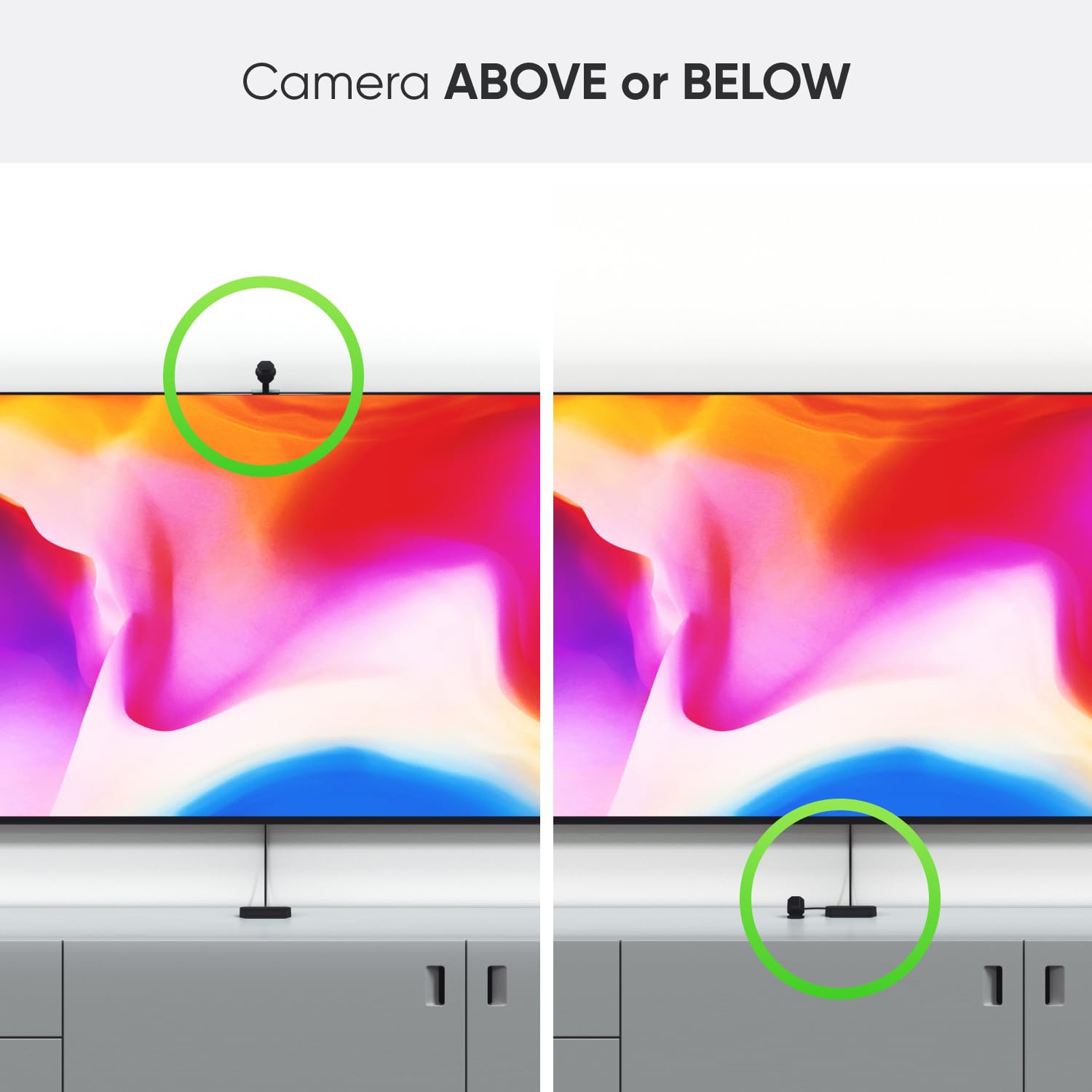

  Mounting Type Camera

  Tape at the bottom of the camera OR via TV mount

  Mounting Type Controller

  Tape at the bottom of the controller

  Mounting Type Lightstrip

  Tape at the back of the Lightstrip

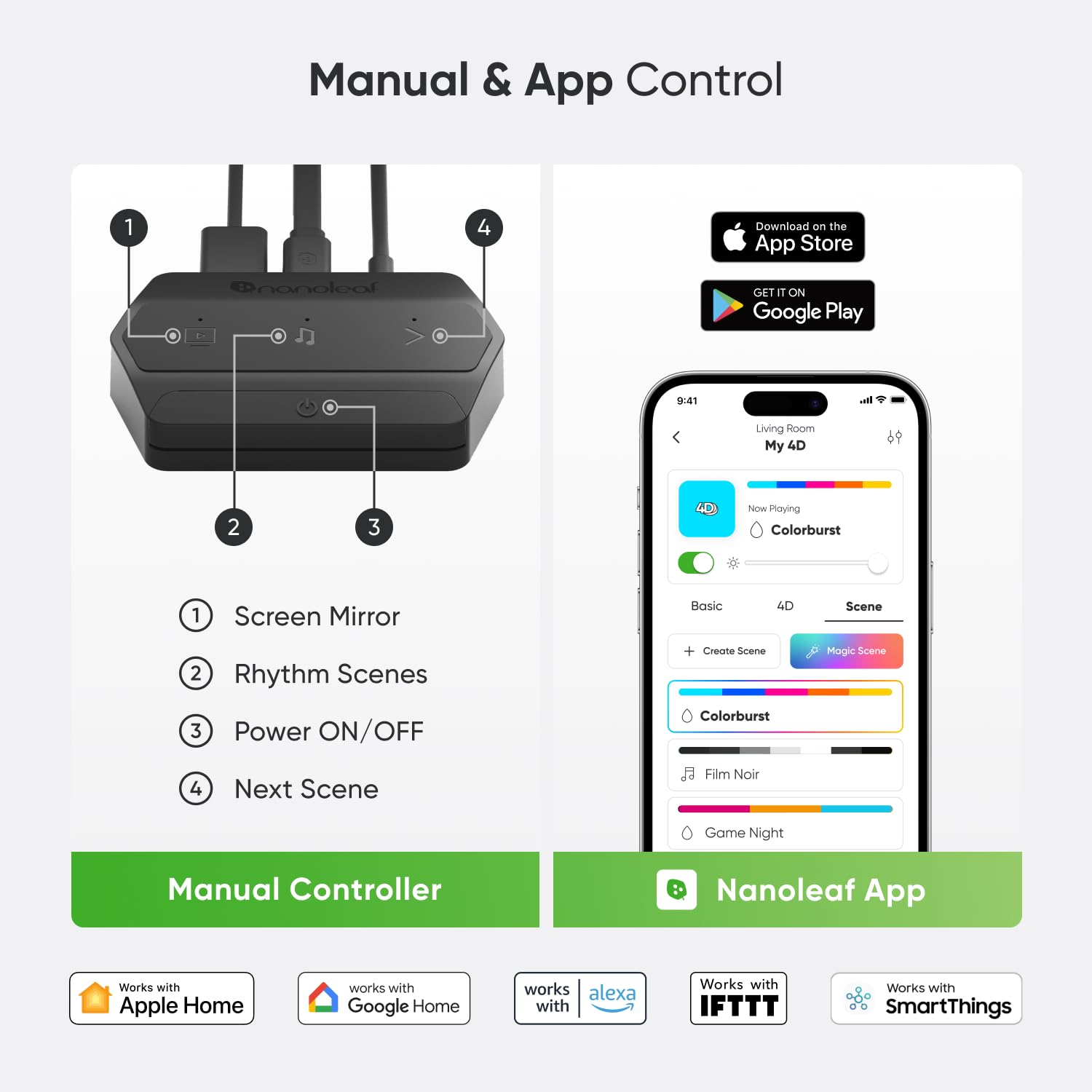

  Nanoleaf App

  Control via the Nanoleaf App (Android & iOS) for mobile/tablet or the Nanoleaf Desktop App (Windows & Mac).

  Compatibility

  Apple Home, Amazon Alexa, Google Home, IFTTT, SmartThings, Razer Chroma

  Usage

  Indoor

  IP Rating

  IP20
• Colour
  Colour Channel Configuration

  RGBIC

  Resolution

  30 LEDs per metre

  Max Colours

  More than 16 million

  Colour Zones

  10 zones per metre
• Power
  Input Voltage

  100V-240V

  PSU Output Voltage

  12V2A

  Max Power Supply Power

  24W

  Max Energy Consumption Per metre of LS

  7.2W
