Nanoleaf Shapes Mini Triangles Expansion Pack

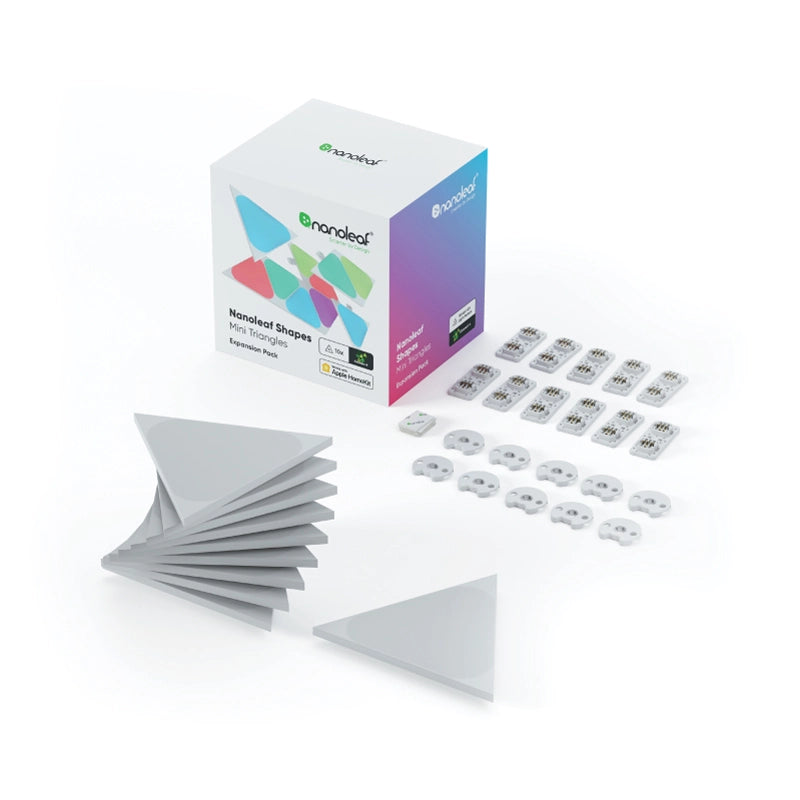

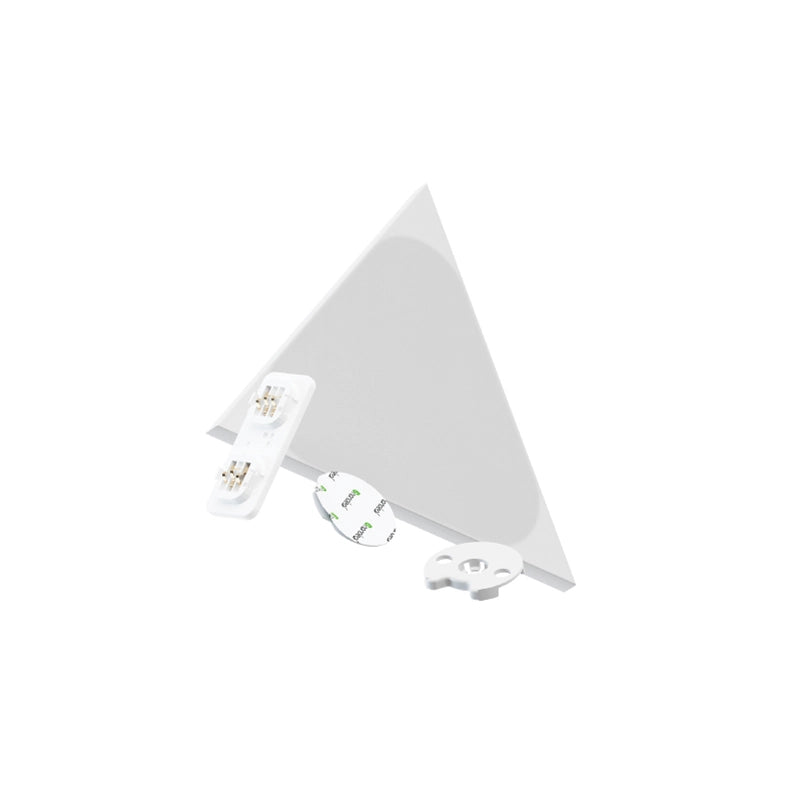

Expand your Shapes design with Mini Triangles Expansion Packs. Each Pack includes 10 Mini Triangle Panels and mounting supplies. Connect up to 77 Mini Triangle Panels with one Power Supply (for bigger layouts get an Add-on Power Supply from the Nanoleaf Shop). Also available in Hexagons and Triangles—mix and match any panel shape from the Nanoleaf Shapes or Elements product lines (NL42/NL47/NL48/NL52 models). Please note, this Pack requires a Shapes Starter Kit to work.

• Dimension




  Height Per Panel

  3.8 inches / 10 cm

  Width Per Panel

  4.5 inches / 11.5 cm

  Panel Thickness

  0.24 inches / 0.6 cm

  Panel mounted thickness

  0.39 inches / 1 cm

  Weight Per Panel

  0.09 pounds / 40 g

  Cable Length

  8.2 feet / 2.5 m
• Features
  Connect+

  Yes, Shapes panels are designed to work together ?






  Touch Control

  Yes

  Music Sync

  Yes

  Screen Mirror

  Yes
• General
  Luminous Flux Per Panel

  20 lumens

  Lifetime

  25,000 hours

  Communication Protocol

  WiFi (2.4 GHz b/g/n)

  NOTE: 5 GHz networks are not compatible with Nanoleaf products.

  Dimmability

  Yes (via App, Voice Control, Touch)

  Mounting Type

  Via included double-sided tape or screw mounts (screws and anchors not included)

  The Nanoleaf App

  Control via Nanoleaf App (Android & iOS) for mobile/tablet or The Nanoleaf Desktop App (Windows & Mac).

  Thread Compatibility

  Yes, Shapes work as Thread Border Router (requires Firmware 8.5.2+)

  Compatibility

  Apple Home, Amazon Alexa, Google Home, IFTTT, physical controller, Nanoleaf Remote, Razer Synapse, SmartThings, Homey
• Colour
  Colour Temperature

  1200K – 6500K

  Colour Channel Configuration

  RGBW

  Colour Capability

  More than 16 million

  Colour Rendering Index (CRI)

  80
• Power
  Voltage

  110VAC – 240VAC

  Max Power Supply Power

  42W

  Energy Consumption Per Panel

  0.54W

  Max Panels Per Included 42W PSU

  77 Panels

  Max Panels per Controller

  500 Mini Triangles
