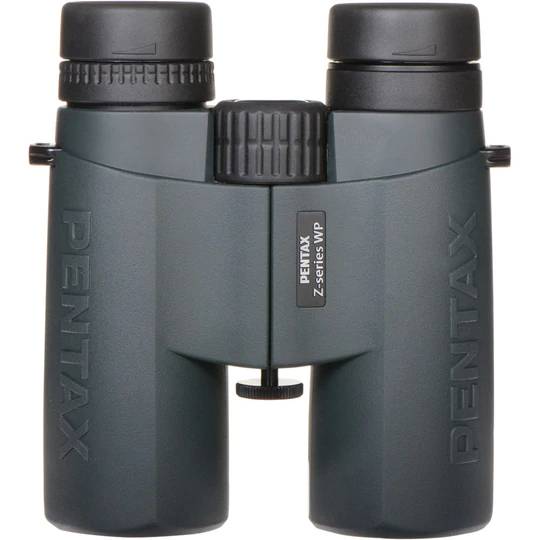

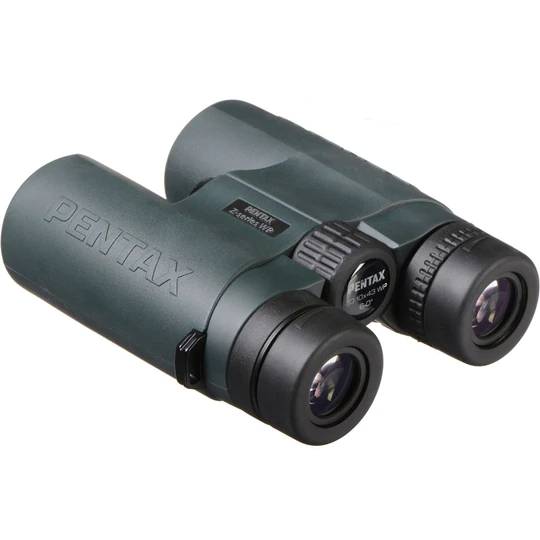

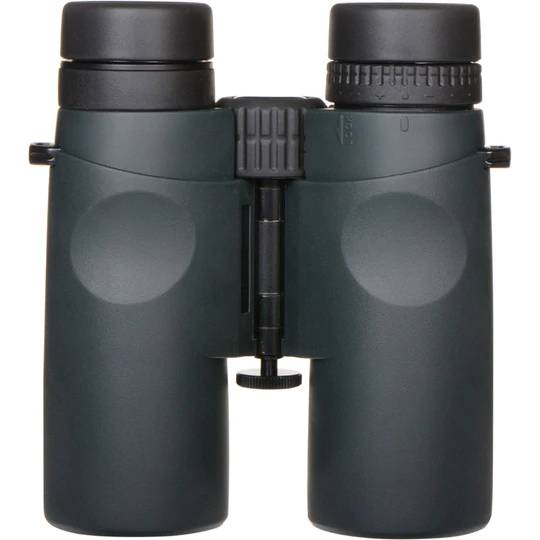

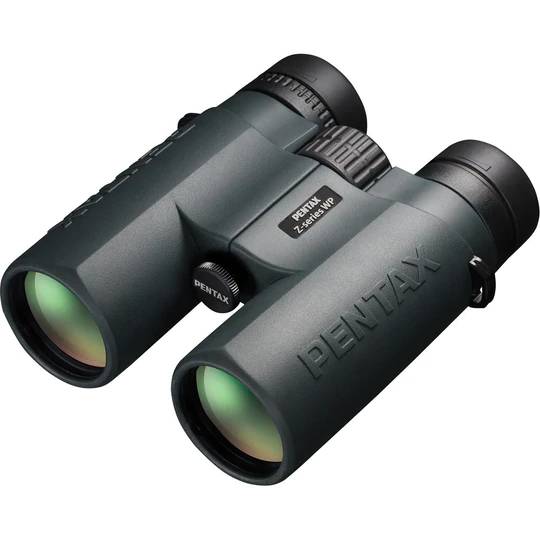

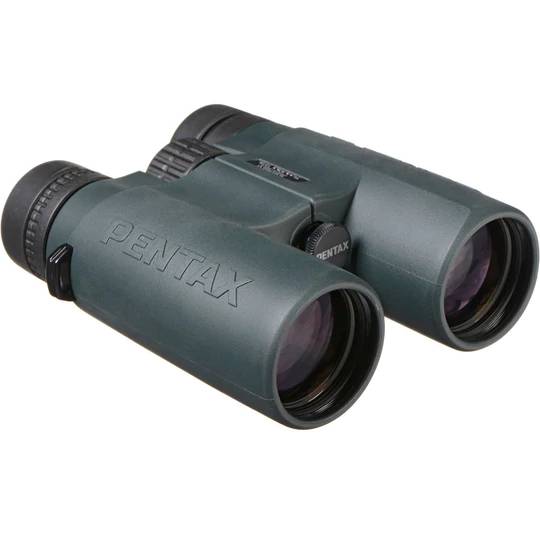

Ricoh Pentax 10x43 Z-Series ZD WP Binoculars
One Year WarrantyDescription
- Hybrid Aspherical Lens Elements
- Fully Multicoated Optics
- Wide Angle of View: 60°
- Nitrogen-Filled, Water and Fogproof
- Closed Bridge Configuration
- Magnesium Alloy Chassis
- Knurled Center Focus Wheel
- Tripod Mountable
- Twist-Up Eyecups
Designed for nature enthusiasts and bird watchers, the Pentax 10x43 Z-Series ZD WP Binoculars feature multiple optical technologies to improve the image quality and ensure accurate colors in all weather and lighting conditions.
The image-enhancement starts with hybrid aspherical lens elements that eliminate distortion around the edges of the lens for clear edge-to-edge views and corrects lens astigmatism that can prevent the ability to bring subjects into sharp focus. Anti-reflection fully multicoated optics maximize light transmission through the entire optical path to make views appear bright and crisp, especially in low light. Finally, the BAK4 roof prisms are phase-corrected to enhance contrast and further correct chromatic aberration. These technologies work together to produce bright and clear high-contrast images with accurate colors and virtually no distortion.
Complementing the optical performance is a housing that is built for a lifetime of rugged outdoor use. The chassis is made of a lightweight and durable magnesium alloy with a rubberized armor that protects against impacts while providing a slip-resistant grip. The optical tubes are nitrogen filled for fogproof performance and O-ring sealed to make the binoculars submersible to as much as 3.3'. An protective external lens coating helps to repel dust, water, and oil to ensure obstruction-free viewing. For longer glassing sessions, they are tripod mountable with an optional adapter.
Optical Performance:
- 10x magnification
- 43mm objective lenses
- BAK4 Roof prism optical path
- Anti-reflection fully multicoated optics
- Phase corrected prisms produce high-contrast images with true color rendition
- Hybrid aspherical lens elements correct for spherical aberrations to reduce distortion at the edges of the lens and corrects for astigmatism that can prevent sharp focusing
- 315' field of view at 1000 yards
- 60° wide angle of view
Use and Handling:
- Closed bridge configuration
- Large knurled center focus wheel
- Right-eye diopter adjustment
- 17mm eye relief, 4.3mm exit pupil
- Twist-up eyecups for use with or without eye wear
- Tripod mountable with optional adapter
Construction Details:
- Lightweight and durable magnesium alloy housing
- Rubberized armoring protects against impacts and provides slip-resistant grip
- Nitrogen-filled, fogproof and submersible to 3.3' (1m)
- Internal focusing system helps to maintain waterproof seals
- Dust/water/grease repellent coatings keeps the optical surfaces clean
Technical Specifications:
|
Prism Type |
Roof |
|
Magnification |
10x |
|
Objective Lens Diameter |
43 mm |
|
Angle of View |
6° (Actual) |
|
Field of View |
315' @ 1000 yd / 105 m @ 1000 m |
|
Minimum Focus Distance |
42.7" / 1.1 m |
|
Exit Pupil Diameter |
4.3 mm |
|
Eye Relief |
17 mm |
|
Diopter Adjustment |
Yes |
|
Focus Type |
Center |
|
Fogproof |
Yes, Nitrogen Filled |
|
Water Resistance |
Waterproof |
|
Dimensions |
5.7 x 5 x 2" / 14.5 x 12.7 x 5.1 cm |
|
Weight |
25 oz / 708.8 g |
In the Box:
- Pentax 10x43 Z-Series ZD WP Binoculars
- Neck Strap

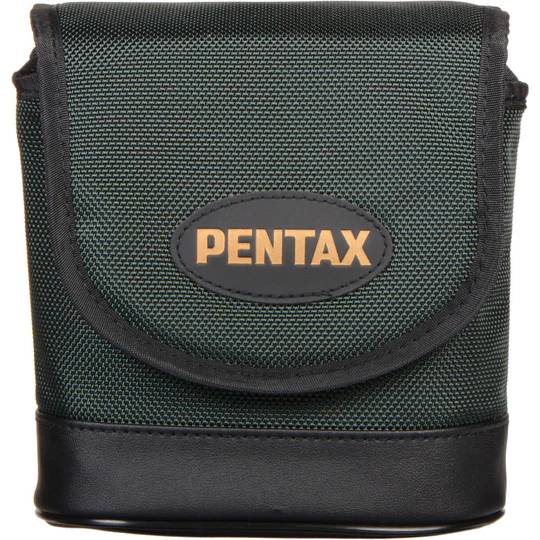

- Carrying Case with Strap
- 2 x Objective Lens Caps
- 2 x Eyepiece Caps
- Limited 1-Year Warranty
-
