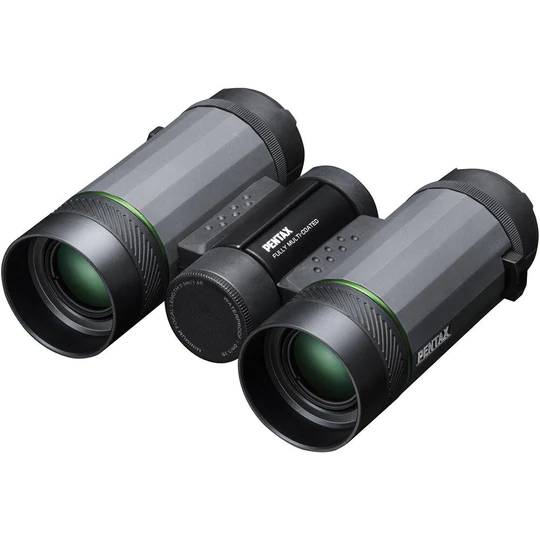

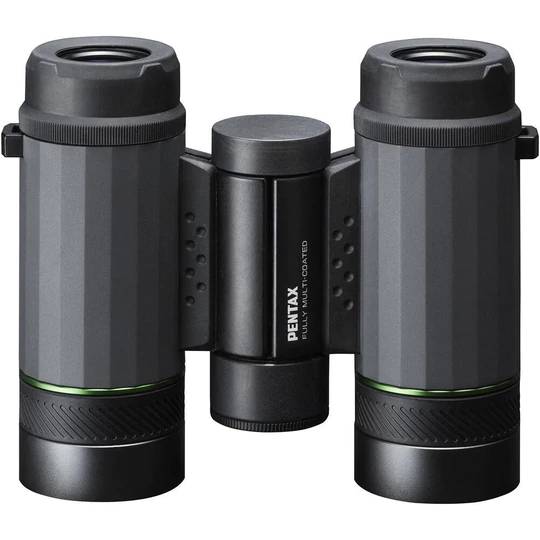

Ricoh Pentax 4X20 VD WP 3 in1 Binocular
Review: 5 - "A masterpiece of literature" by , written on May 4, 2006
I really enjoyed this book. It captures the essential challenge people face as they try make sense of their lives and grow to adulthood.

Ricoh Pentax 4X20 VD WP 3 in1 Binocular

Available: In Stock
  • Product SKU: Ricoh Pentax 4X20 VD WP 3-in-1 Binocular
  • Category: Ricoh
Rs. 20,995.00
  • Order within
  • Three Different Uses & Configurations
  • Use as One Binocular or Two Monoculars

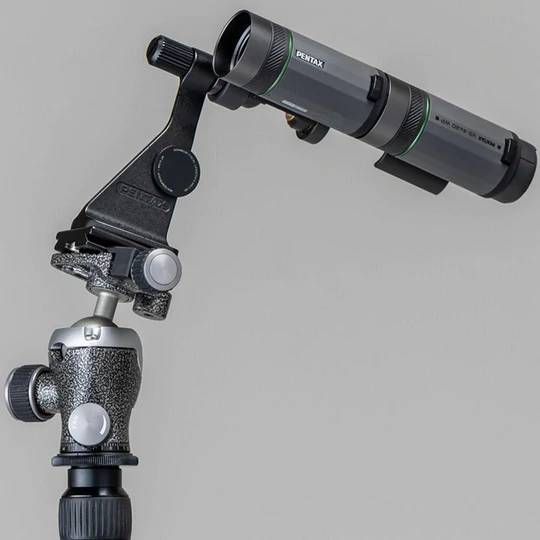

  • Stack Optical Tubes as a 16x Spotter
  • Dielectric & Phase-Corrected Roof Prisms
  • Anti-Reflection Fully Multi-Coated
  • Waterproof to an IPX7-Rating
  • Twist-Up Helicoid Eyecups

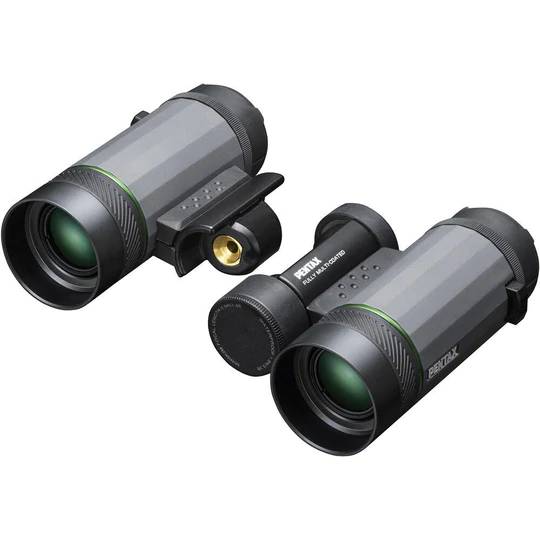

Outfitted with a truly innovative design, the Pentax 4X20 VD WP 3-in-1 Binocular can be quickly and easily converted from a simple binocular into either two separate monoculars or, with the optical tubes stacked one in front of the other, a powerful 16x spotting scope. Depending on what configuration you put the 4x20 VD in, the performance will change. For example:

  • As a binocular the close focus distance is 5 feet, but as monoculars that distance drops to an impressive 20 inches.
  • The angle of view constricts from 10° as a binocular or monocular to 2.6° in spotter mode.
  • Similarly, the exit pupil is 5mm in binocular/monocular modes and drops to 1.25mm in spotter configuration.

Optically, the low magnification produces a generous 5mm exit pupil that keeps the scene in full view. Dielectric and phase-correcting prism coatings work together with anti-reflection fully multicoated optics to maximize light transmission to produce bright and clear high-contrast views with accurate color and crisp resolution. Twist-up helicoid rubber eyecups make using them with or without eyewear comfortable.

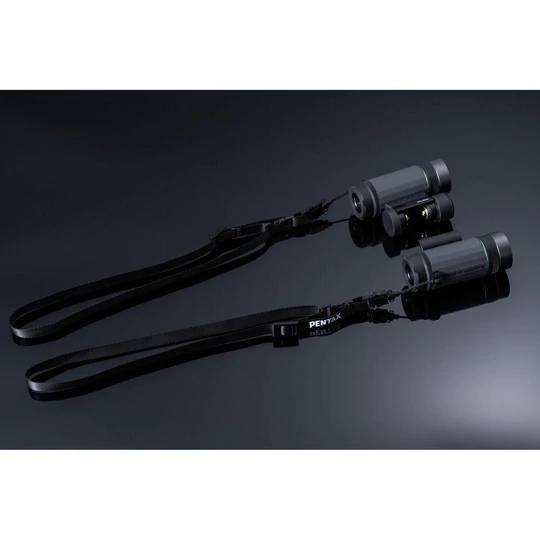

Designed for comfort and durability, the housing has exterior armor and ridges that provide a slip-resistant grip. The housing is sealed to an IPX7 rating, so you can keep using it if you get caught in a sudden downpour or gets accidentally dropped in a puddle or shallow stream. Since the VD WP is meant to be used by two people when configured as monoculars, the included neck strap can be converted into two wrist straps for security.

Technical Specifications:

Prism Type

Roof

Magnification

4x

Objective Lens Diameter

20 mm

Angle of View

4x: 10° (Actual)

16x: 2.6° (Actual)

Field of View

4x: 527.11' @ 1000 yd / 175 m @ 1000 m

16x: 135.54' @ 1000 yd / 45 m @ 1000 m

Minimum Focus Distance

4.92' / 1.5 m

Exit Pupil Diameter

4x: 5 mm

16x: 1.25 mm

Eye Relief

19 mm

Interpupillary Adjustment

None

Diopter Adjustment

None

Focus Type

Individual

Fogproof

No

Water Resistance

Waterproof, IPX7

Dimensions

4.61 x 3.74 x 1.42" / 117 x 95 x 36 mm

Weight

12.9 oz / 366 g

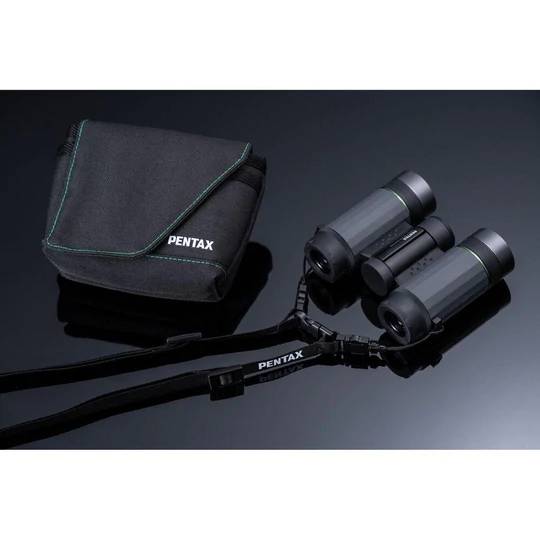

In the Box:

  • Pentax 4X20 VD WP 3-in-1 Binocular

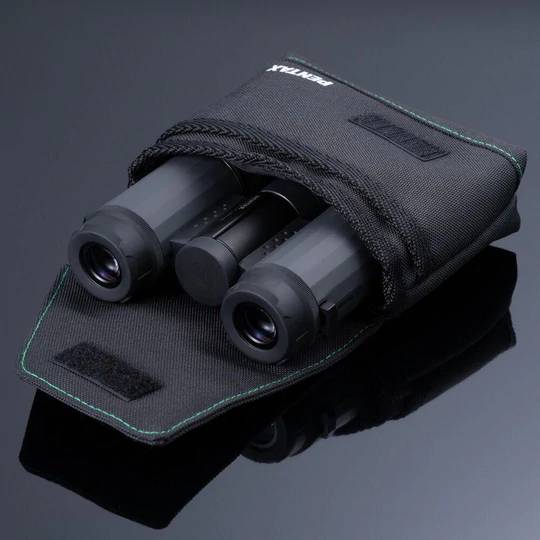

  • Case

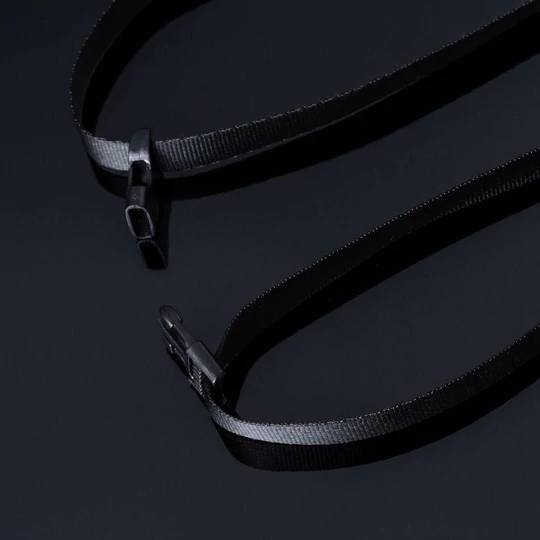

  • Convertible Strap
  • Limited 1-Year Warranty
Pentax > Pentax 4X20 VD WP 3-in-1 Binocular
  • Three Different Uses & Configurations
  • Use as One Binocular or Two Monoculars
  • Stack Optical Tubes as a 16x Spotter
  • Dielectric & Phase-Corrected Roof Prisms
  • Anti-Reflection Fully Multi-Coated
  • Waterproof to an IPX7-Rating
  • Twist-Up Helicoid Eyecups

Outfitted with a truly innovative design, the Pentax 4X20 VD WP 3-in-1 Binocular can be quickly and easily converted from a simple binocular into either two separate monoculars or, with the optical tubes stacked one in front of the other, a powerful 16x spotting scope. Depending on what configuration you put the 4x20 VD in, the performance will change. For example:

  • As a binocular the close focus distance is 5 feet, but as monoculars that distance drops to an impressive 20 inches.
  • The angle of view constricts from 10° as a binocular or monocular to 2.6° in spotter mode.
  • Similarly, the exit pupil is 5mm in binocular/monocular modes and drops to 1.25mm in spotter configuration.

Optically, the low magnification produces a generous 5mm exit pupil that keeps the scene in full view. Dielectric and phase-correcting prism coatings work together with anti-reflection fully multicoated optics to maximize light transmission to produce bright and clear high-contrast views with accurate color and crisp resolution. Twist-up helicoid rubber eyecups make using them with or without eyewear comfortable.

Designed for comfort and durability, the housing has exterior armor and ridges that provide a slip-resistant grip. The housing is sealed to an IPX7 rating, so you can keep using it if you get caught in a sudden downpour or gets accidentally dropped in a puddle or shallow stream. Since the VD WP is meant to be used by two people when configured as monoculars, the included neck strap can be converted into two wrist straps for security.

Technical Specifications:

Prism Type

Roof

Magnification

4x

Objective Lens Diameter

20 mm

Angle of View

4x: 10° (Actual)

16x: 2.6° (Actual)

Field of View

4x: 527.11' @ 1000 yd / 175 m @ 1000 m

16x: 135.54' @ 1000 yd / 45 m @ 1000 m

Minimum Focus Distance

4.92' / 1.5 m

Exit Pupil Diameter

4x: 5 mm

16x: 1.25 mm

Eye Relief

19 mm

Interpupillary Adjustment

None

Diopter Adjustment

None

Focus Type

Individual

Fogproof

No

Water Resistance

Waterproof, IPX7

Dimensions

4.61 x 3.74 x 1.42" / 117 x 95 x 36 mm

Weight

12.9 oz / 366 g



In the Box:

  • Pentax 4X20 VD WP 3-in-1 Binocular
  • Case
  • Convertible Strap
  • Limited 1-Year Warranty
