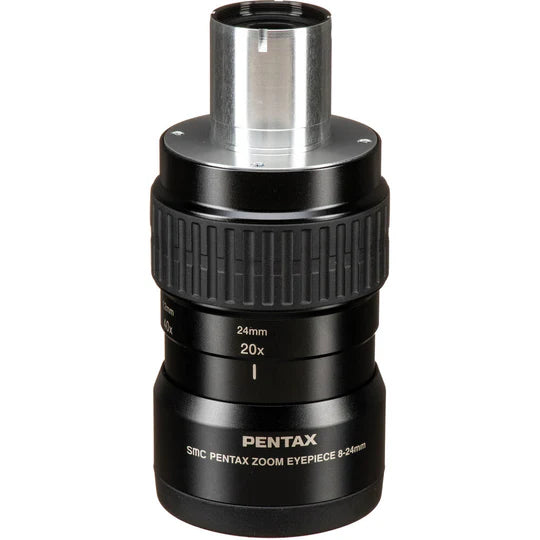

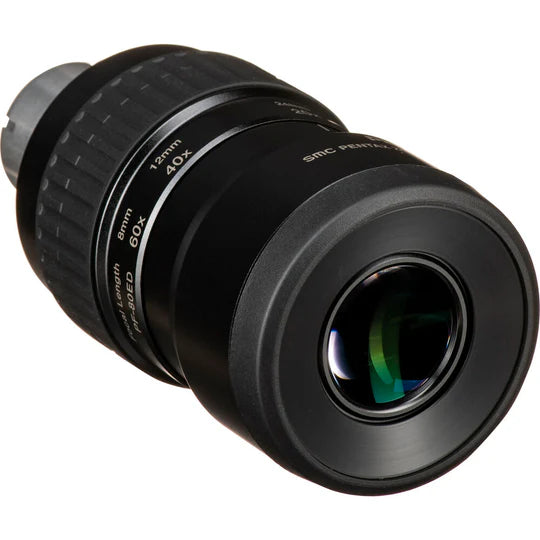

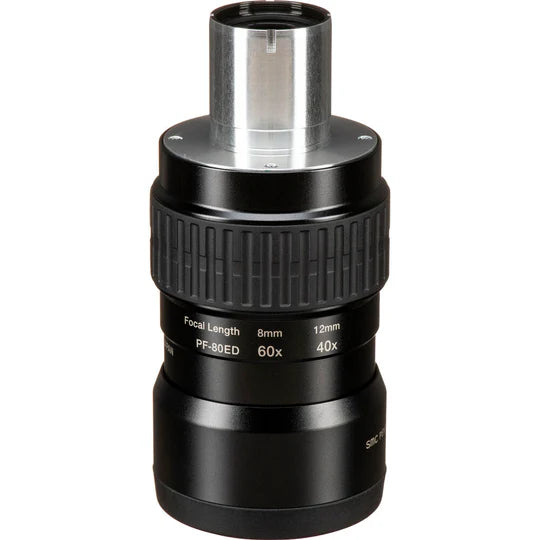

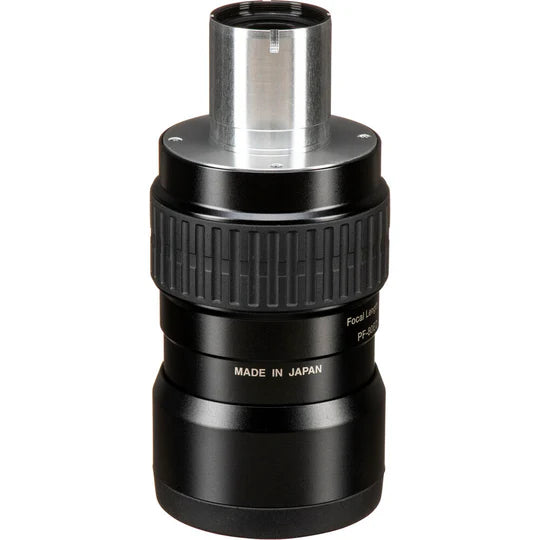

Ricoh Pentax SMC 8-24mm Zoom Eyepiece
One Year WarrantyDescription
- 26-78x with 100mm Scope
- 21-63x/20-60x/20-61x with 80mm Scopes
- 16-46x/16-48x with 65mm Scopes
- For Any Scope Using 1.25" Eyepieces
- Waterproof & Fogproof
- Wide Angle
- 20-60x Magnification
- 18-22mm Eye Relief
- 38-60° Apparent Angle of View
Constructed with high-refraction, low-dispersion, multi-coated lanthanum glass optics, the SMC 8-24mm Zoom Eyepiece fits all Pentax spotting scopes for terrestrial viewing, and can also be used with telescopes with 1.25" focusers. It offers generous 18-22mm eye relief for comfortable viewing and an apparent angle of view as wide as 60°. Built to Japanese Industrial Standards Class 4, it is weather resistant.
Compatibility:
- Pentax PF-100ED, PF-80EDA, PF-80ED, PR-80EDA, PR-65EDA, PF-65ED(A)II spotting scopes
Optical Performance:
- Apparent angle of view 38-60°
- Long 18/22mm eye relief accommodates eyewear
- Magnification: 26-78x with 100mm scope, 21-63x/20-60x/20-61x with 80mm scopes, 16-46x/16-48x with 65mm scopes
Construction Details:
- USA Standard 1.25" eyepiece threading diameter
- Waterproof & fogproof (JIS Class 4-rated)
- Multi-layer coated optics
- High-refraction, low dispersion lanthanum glass
- Accepts conventional 1.25" diameter filters for astronomical and terrestrial applications
Technical Specifications:
|
Magnification |
With PF-100ED Scopes: 26 to 78x With PF-80EDA Scopes: 21 to 63x With PF-80ED Scopes: 20 to 60x With PR-80EDA Scopes: 20 to 61x With PR-65EDA Scopes: 16 to 46x With PF-65ED(A)II Scopes: 16 to 48x |
|
Angle of View |
With PF-100ED Scopes: 1.5 to 0.8° (Actual) With PF-80EDA Scopes: 1.8 to 0.9° (Actual) With PF-80ED Scopes: 1.9 to 1° (Actual) With PR-80EDA Scopes: 1.9 to 1° (Actual) With PR-65EDA Scopes: 2.4 to 1.3° (Actual) With PF-65ED(A)II Scopes: 2.4 to 1.2° (Actual) 38 to 60° (Apparent) |
|
Field of View |
With PF-100ED Scopes: 78 to 42' @ 1000 yd / 26 to 14 m @ 1000 m With PF-80EDA Scopes: 93 to 49' @ 1000 yd / 31 to 16.5 m @ 1000 m With PF-80ED Scopes: 99 to 51' @ 1000 yd / 33 to 17 m @ 1000 m With PR-80EDA Scopes: 99 to 54' @ 1000 yd / 33 to 18 m @ 1000 m With PR-65EDA, PF-65ED(AII Scopes: 120 to 63' @ 1000 yd / 40 to 21 m @ 1000 m |
|
Exit Pupil Diameter |
With PF-100ED Scopes: 3.9 to 1.3 mm With PF-80EDA Scopes: 3.8 to 1.3 mm With PF-80ED Scopes: 4 to 1.3 mm With PR-80EDA Scopes: 4 to 1.3 mm With PR-65EDA Scopes: 4.1 to 1.4 mm With PF-65ED(A)II Scopes: 4 to 1.4 mm |
|
Eye Relief |
18.0 to 22.0 mm |
|
Dimensions |
ø: 2.7 x L: 5.7" / ø: 69 x L: 144 mm |
|
Weight |
1.2 lb / 550 g |
