ZOOM H8 HANDY RECORDER

12 simultaneous recording tracks, interchangeable capsules, and an App-driven touchscreen interface, the H8 is designed to meet all your audio recording needs. Zoom’s Capsule System 2.0 allows up to 4 channels of audio to be added to the H8's capsule connection, creating new ways to expand your recording capabilities.

FEATURES

• Customized applications for field recording, music and podcasting
• 3 distinct interfaces for field recording, music and podcasting
• Interchangeable input capsules
• 12-track simultaneous recording
• Four mic inputs and two XLR/TRS combo connectors
• Gain control knobs and -20dB pads for each input
• Supplied XYH-6 X/Y capsule provides secondary input via a stereo ⅛” Mic/Line In mini phone jack
• Phantom power for all six XLR mic inputs: +24/+48V
• Large color LCD touchscreen display
• Records directly to SD, SDHC and SDXC cards up to 512GB
• Up to 24-bit /96kHz audio in BWF-compliant WAV or a variety of MP3 formats
• Auto-record, Pre-record and Backup-record functions mean that you'll never miss that perfect take
• Built-in effects, including low-cut filtering, compression, and limiting
• Multichannel and stereo USB audio interface for PC/Mac/iPad
• Accepts standard AA alkaline or NiMH rechargeable batteries
• Over 10 hours of operation with 4 AA alkaline batteries (not included in the scope of delivery)

• XAH-8 CAPSULE

  The XAH-8 capsule delivers pristine stereo recordings. Easily rotate the capsules from a tight XY pattern to a wide AB pattern to enhance the stereo image of your recordings.

• VRH-8 CAPSULE

  The VRH-8 is an Ambisonic mic capsule that utilizes four condenser microphones to deliver immersive 360 audio recordings. A built-in accelerometer helps ensure the capsule is always perfectly aligned, while the on-board Ambisonic decoder automatically handles the necessary conversions, saving you time in post-production.

• EXH-8 CAPSULE

  The EXH-8 capsule provides 4 additional XLR inputs, giving you a total of 10. Each additional input has a dedicated gain knob and pad switch. You can even use your favorite condenser microphones—just connect a power source to the EXH-8 capsule to supply phantom power.

• INPUTS & OUTPUTS

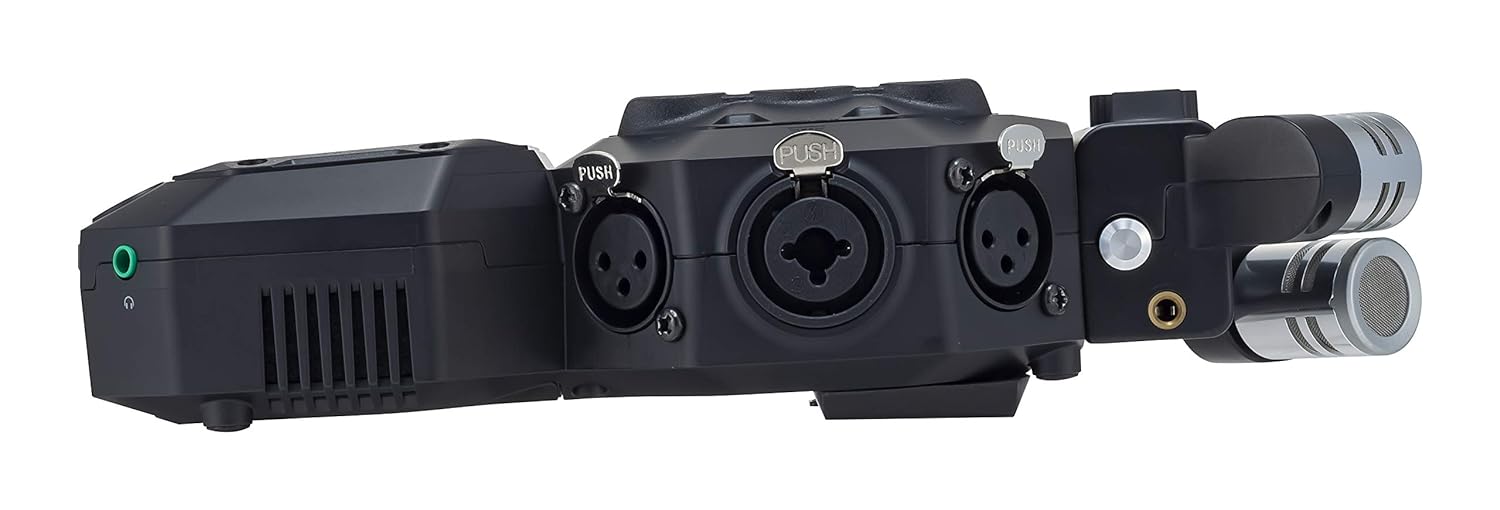

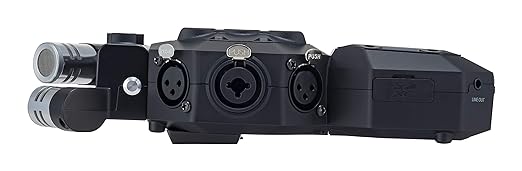

  H8 offers 4 XLR inputs with dedicated pad switches and gain control. 2 additional XLR/TRS combo jacks with Hi-Z switches allow you to capture line level signals, microphones, or directly record electric guitars and basses. Monitor tracks using the built-in 1/8” headphone output or connect directly to your camera using the dedicated stereo line output..

• MULTI-CHANNEL AUDIO INTERFACE

  The H8 is a powerful USB audio interface. Connect via USB to your PC, Mac, or iPad for up to 12 channels of simultaneous recording.

• THE MIC CAPSULE

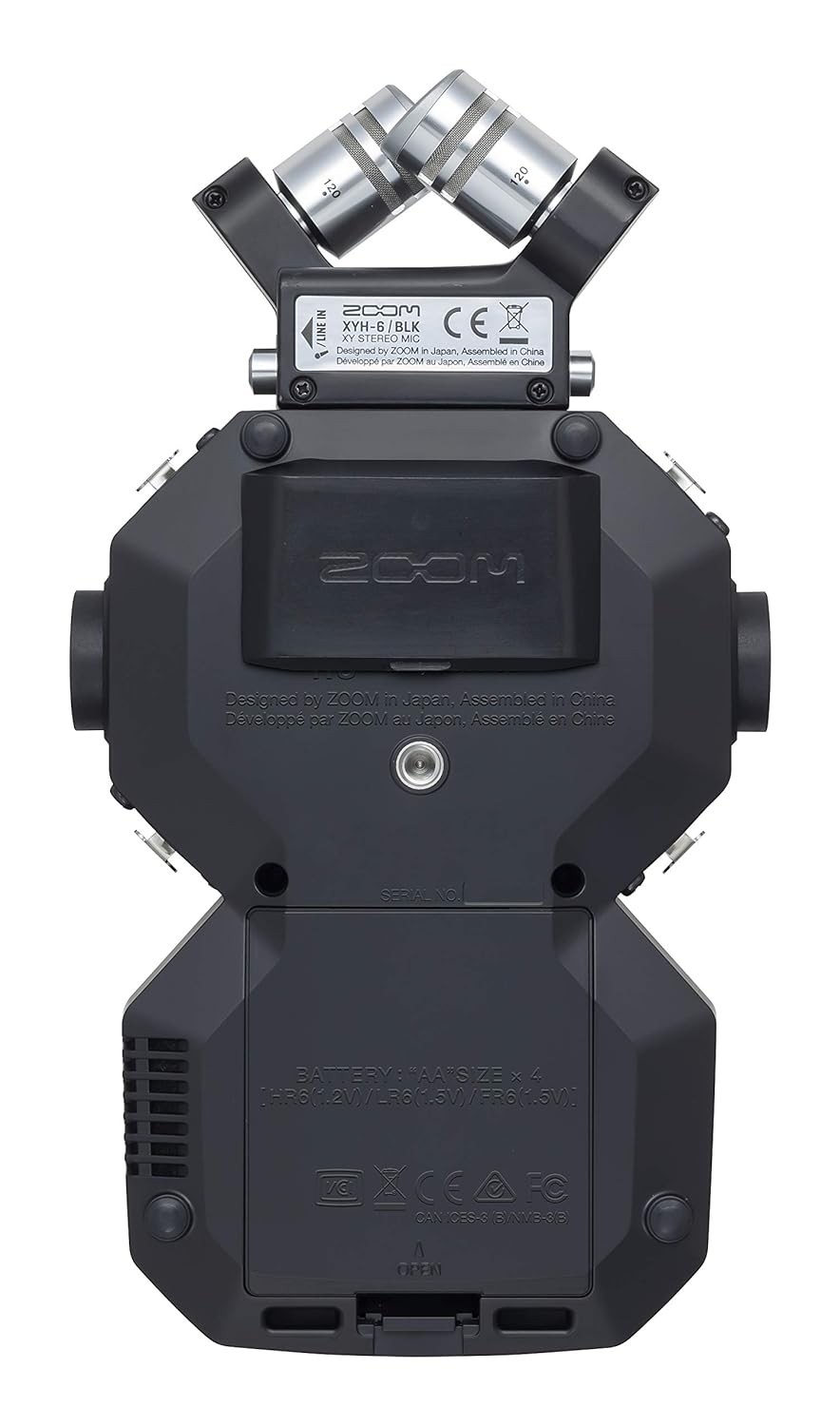

  The H8 comes with the Zoom XYH-6 microphone. This capsule provides two matched high-quality unidirectional mics, for capturing signal directly in front of the recorder. With the Zoom mic capsule system you can easily swap capsules to ensure you’re always using the right mic for the job.

• THERE'S AN APP FOR YOUR WORKFLOW

  Whether you’re capturing audio on location, recording music, or producing a podcast, the H8 color touchscreen adapts to your project’s needs with three App-driven interface options. All with the touch of your finger.
